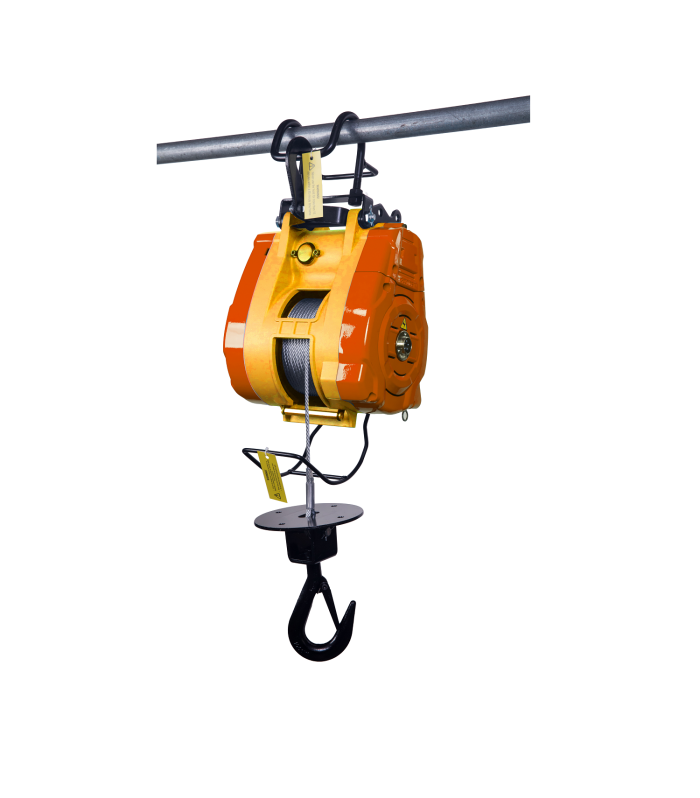

Electric wire rope winch (brushless) type LB RX-lift
• EN 14492-1
• voltage: 230V/50-60Hz/1Ph
• brushless electromotor
• two speed lifting
• duty cycle: 50 %
• protection class: IP54
• control pendant protection class IP65
• working temperature: -10°C – +40°C
• environment humidity: < 90 %
• professional electric winch with smaller dimensions and load capacity
• fast and simple installation (possibility of mounting on cylindrical and flat beam)
• double braking system
• protection against rewinding the rope in in the opposite direction and in occasion when wire rope limit achievements (special limit lever)
• possibility of installing radio control
Advantages compared to type LES-M:
• more powerful electromotor with higher efficiency
• brushless electromotor -> less maintenance cost
• two speed lifting
• higher duty cycle 50 % > 25 %
• EN 14492-1
• voltage: 230V/50-60Hz/1Ph
• brushless electromotor
• two speed lifting
• duty cycle: 50 %
• protection class: IP54
• control pendant protection class IP65
• working temperature: -10°C – +40°C
• environment humidity: < 90 %
• professional electric winch with smaller dimensions and load capacity
• fast and simple installation (possibility of mounting on cylindrical and flat beam)
• double braking system
• protection against rewinding the rope in in the opposite direction and in occasion when wire rope limit achievements (special limit lever)
• possibility of installing radio control
Advantages compared to type LES-M:
• more powerful electromotor with higher efficiency
• brushless electromotor -> less maintenance cost
• two speed lifting
• higher duty cycle 50 % > 25 %
| Model | , , , |
|---|---|
| Capacity (kg) | , , , |
| Voltage (V) | |
| Motor (kW) | , , , |
| Duty cycle ED (%) | |
| Diameter of steel rope (mm) | |
| Rope length (stand./maks.) | |
| Lifting speed - (m/min) | , , , |
| Net weight (kg) | , , , |
