Eye shortening cradle grab hook G80

Eye shortening cradle grab hook G80 - Image 2

Eye shortening cradle grab hook G80

Eye shortening cradle grab hook G80

Varijacije

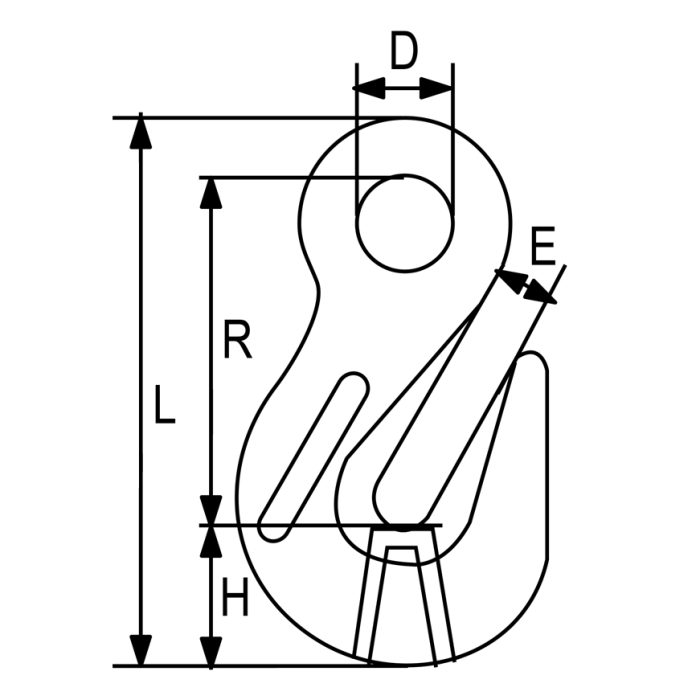

Chain diameter (mm)	Capacity (t)	Min. breaking force (t)	E (mm)	D (mm)	H (mm)	R (mm)	L (mm)	Weight (kg/piece)	Napomena	Dodaj na ponudu
6-8	1.12	4.48	8	13.5	17.9	51.4	75.3	0.14
7/8-8	2	8.0	10.8	18	20	61.5	91.2	0.245
10-8	3.15	12.6	13.5	20	29	80	122	0.65
13-8	5.3	21.2	16.5	26	42.8	99.7	158	1.39
16-8	8	32	20	30.5	47.7	104	169	2.2
18/20-8	12.5	50	25	37.5	56	140	219	4.6
22-8	15	60	28	44	68	165	259	8.2
26-8	21.2	84.8	30	41	77	188.5	298	9.8
32-8	31.5	12,6	38	57	95	228	361	19.4

Katalog

Preuzmi katalog (PDF)

Description

Eye shortening cradle grab hook G80

Additional information

Chain diameter (mm)
Capacity (t)
Min. breaking force (t)
E (mm)	10.8 , 13.5 , 16.5 , 20 , 25 , 28 , 30 , 38 , 8
D (mm)	13.5 , 18 , 20 , 26 , 30.5 , 37.5 , 41 , 44 , 57
H (mm)	17.9 , 20 , 29 , 42.8 , 47.7 , 56 , 68 , 77 , 95
R (mm)	104 , 140 , 165 , 188.5 , 228 , 51.4 , 61.5 , 80 , 99.7
L (mm)	122 , 158 , 169 , 219 , 259 , 298 , 361 , 75.3 , 91.2
Weight (kg/piece)

SKU: skracivac-lanca-kuka-sa-okom-g80-rx085 Categories: G80 and G100 accessories, G80 accessories
