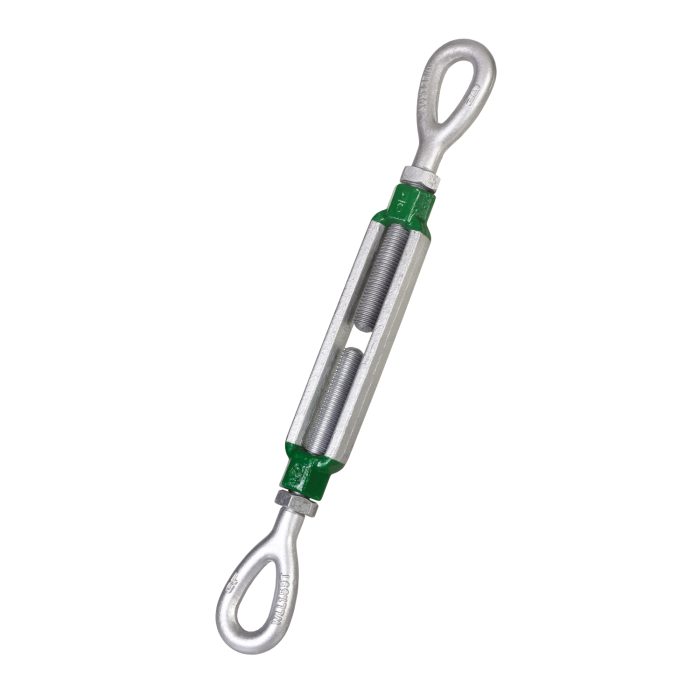

Green Pin® Turnbuckle G-6311

Green Pin® Turnbuckle G-6311 - Image 2

Green Pin® Turnbuckle G-6311

Green Pin® Turnbuckle G-6311

Varijacije

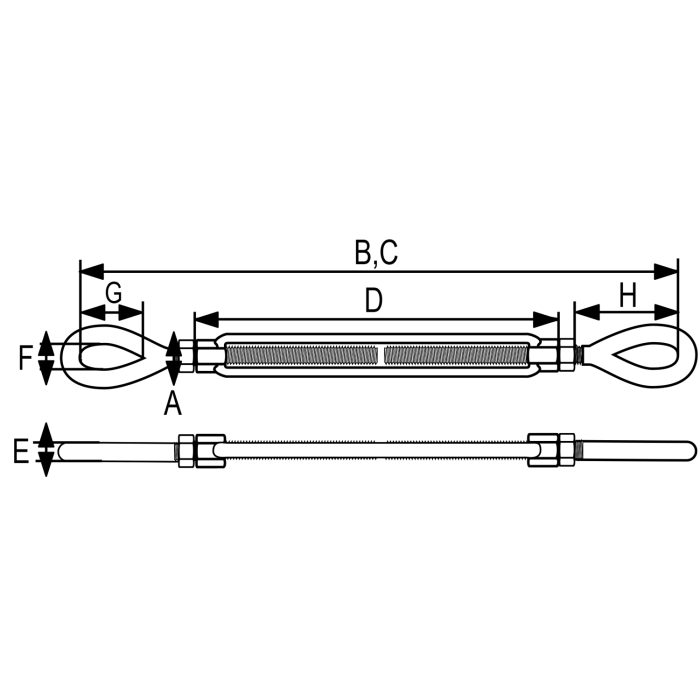

Capacity (t)	A (‘‘)	D (mm)	Max. extension forks (inches)	B (mm)	c (mm)	E (mm)	F (mm)	G (mm)	H (mm)	Weight (kg/piece)	Napomena	Dodaj na ponudu
0.54	3/8	183	6	292	428	10	13	29	49	0.48
1	1/2	193	6	32,5	455	12	18	36	58	0.81
1	1/2	270	9	400	608	12	18	36	57	1.07
1	1/2	346	12	476	760	12	18	36	57	1.29
1.59	5/8	203	6	380	503	14	21	45	79	1.33
1.59	5/8	280	9	455	656	14	21	45	78	1.61
1.59	5/8	356	12	531	808	14	21	45	78	1.96
2.36	3/4	214	6	413	532	17	26	54	89	2.03
2.36	3/4	291	9	490	685	17	26	54	89	2.47
2.36	3/4	367	12	564	837	17	26	54	88	2.9
2.36	3/4	519	18	718	1,143	17	26	54	89	3.94
3.27	7/8	377	12	604	87,0	20	32	61	101	4.31
3.27	7/8	529	18	756	1,174	20	32	61	101	5.51
4.5	1	692	24	952	1,518	24	37	76	116	7.52
4.54	1	234	6	498	604	24	37	76	118	4.35
4.54	1	387	12	649	909	24	37	76	117	5.51
4.54	1	539	18	801	1,215	24	37	76	117	7.27
6.9	1 1/4	385	12	712	985	29	47	91	145	9.28
6.9	1 1/4	537	18	862	1,287	29	47	91	144	11.1
6.9	1 1/4	690	24	1,015	1,592	29	47	91	144	12.1
9.71	1 1/2	401	12	756	1,023	32	55	106	156	14.2
9.71	1 1/2	553	18	916	1,335	32	55	106	160	15.8
9.71	1 1/2	706	24	1,065	1,636	32	55	106	158	17.1
12.7	1 3/4	577	18	1,020	1,396	38	61	120	197	23.1
12.7	1 3/4	730	24	1,171	1,703	38	61	120	196	26.3
16.8	2	748	24	1,264	1,784	46	69	147	230	40.7
27.2	2 1/2	802	24	1,430	1,934	51	80	165	274	64
34	2 3/4	802	24	1,450	1,988	57	84	178	284	88

Description

Green Pin® Turnbuckle G-6311

Additional information

Capacity (t)
A (‘‘)	1 , 1 1/2 , 1 1/4 , 1 3/4 , 1/2 , 2 , 2 1/2 , 2 3/4 , 3/4 , 3/8 , 5/8 , 7/8
D (mm)	183 , 193 , 203 , 214 , 234 , 270 , 280 , 291 , 346 , 356 , 367 , 377 , 385 , 387 , 401 , 519 , 529 , 537 , 539 , 553 , 577 , 690 , 692 , 706 , 730 , 748 , 802
Max. extension forks (inches)
B (mm)	1,015 , 1,020 , 1,065 , 1,171 , 1,264 , 1,430 , 1,450 , 292 , 32,5 , 380 , 400 , 413 , 455 , 476 , 490 , 498 , 531 , 564 , 604 , 649 , 712 , 718 , 756 , 801 , 862 , 916 , 952
c (mm)	1,023 , 1,143 , 1,174 , 1,215 , 1,287 , 1,335 , 1,396 , 1,518 , 1,592 , 1,636 , 1,703 , 1,784 , 1,934 , 1,988 , 428 , 455 , 503 , 532 , 604 , 608 , 656 , 685 , 760 , 808 , 837 , 87,0 , 909 , 985
E (mm)	10 , 12 , 14 , 17 , 20 , 24 , 29 , 32 , 38 , 46 , 51 , 57
F (mm)	13 , 18 , 21 , 26 , 32 , 37 , 47 , 55 , 61 , 69 , 80 , 84
G (mm)	106 , 120 , 147 , 165 , 178 , 29 , 36 , 45 , 54 , 61 , 76 , 91
H (mm)	101 , 116 , 117 , 118 , 144 , 145 , 156 , 158 , 160 , 196 , 197 , 230 , 274 , 284 , 49 , 57 , 58 , 78 , 79 , 88 , 89
Weight (kg/piece)

SKU: green-pin-zateznica-oko-oko-g-6311 Categories: General hardware, Turnbuckles
