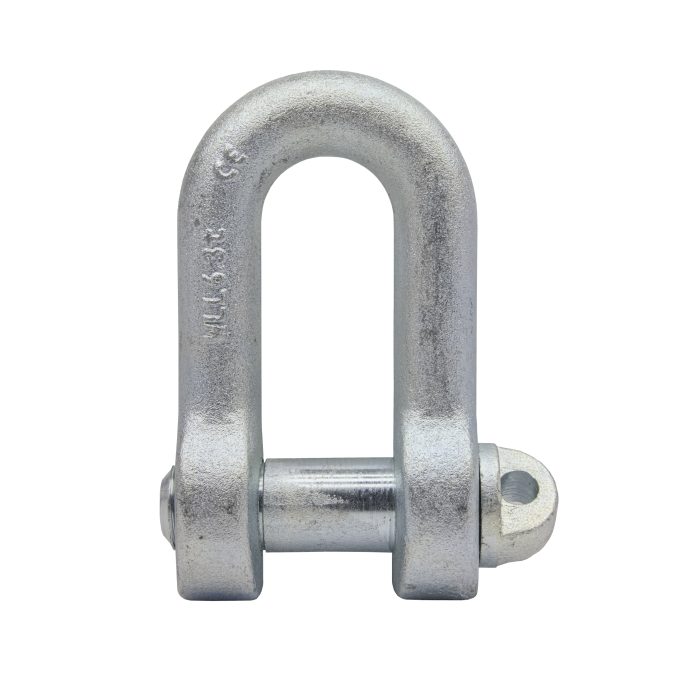

Shackle according to DIN 82101 RX-lift

Shackle according to DIN 82101 RX-lift - Image 2

Shackle according to DIN 82101 RX-lift

• standard: DIN 82101
• safety factor: 4:1 or 5:1
• finish: hot dipped galvanized or ungalvanized

Varijacije

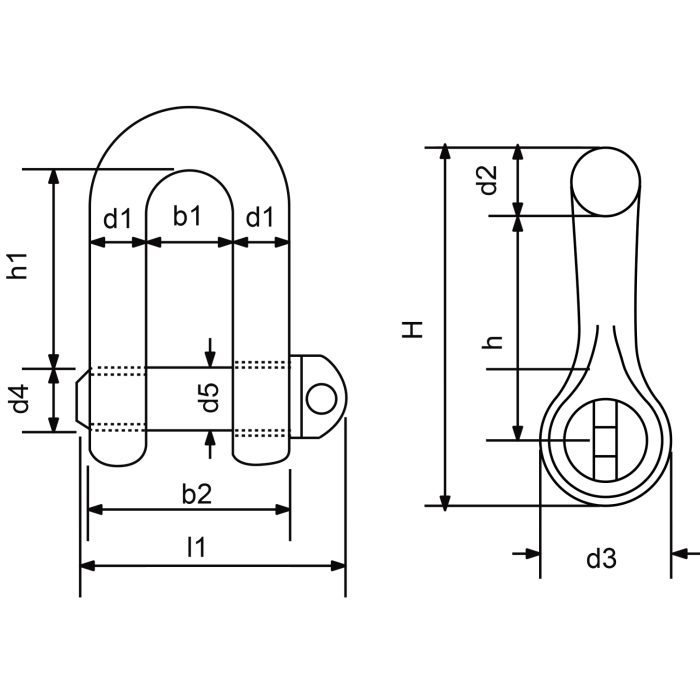

Capacity (t)	b1 (mm)	B2 (mm)	D1 (mm)	D2 (mm)	D3 (mm)	H1 (mm)	Napomena	Dodaj na ponudu
0,1	7	15	4	10	M 5	15,5
0,16	8	18	5	12	M 6	18,0
0,25	11	25	7	16	M 8	24,0
0,4	14	30	8	20	M 10	30,0
0,63	17	37	10	24	M 12	36,0
10	21	47	13	32	M 16	49,0
1,6	27	61	17	40	M 20	61,0
2,0	30	68	19	44	M 22	67,0
2,5	33	75	21	48	M 24	73,0
3,15	38	86	24	54	M 27	83,5
4,0	42	96	27	60	M 30	91,0
50	47	107	30	72	M 36	111,0
63	53	121	34	78	M 39	119,5
8,0	60	136	38	90	M 45	139,5
10,0	66	150	42	96	M 48	147,0
12,0	73	167	47	104	M 52	158,0
16,0	81	185	52	120	M 60	185,0
20,0	90	206	58	136	M 68	211,0
250	100	226	63	144	M 72	221,0
3,20	110	250	7,0	160	M 80	246,0
40,0	125	283	79	180	M 90	276,0
56,0	14,0	316	88	200	M 100	307,0
630	155	347	96	220	M 110	339,0

Description

• standard: DIN 82101
• safety factor: 4:1 or 5:1
• finish: hot dipped galvanized or ungalvanized

Additional information

Capacity (t)
b1 (mm)	100 , 11 , 110 , 125 , 14 , 14,0 , 155 , 17 , 21 , 27 , 30 , 33 , 38 , 42 , 47 , 53 , 60 , 66 , 7 , 73 , 8 , 81 , 90
B2 (mm)	107 , 121 , 136 , 15 , 150 , 167 , 18 , 185 , 206 , 226 , 25 , 250 , 283 , 30 , 316 , 347 , 37 , 47 , 61 , 68 , 75 , 86 , 96
D1 (mm)	10 , 13 , 17 , 19 , 21 , 24 , 27 , 30 , 34 , 38 , 4 , 42 , 47 , 5 , 52 , 58 , 63 , 7 , 7,0 , 79 , 8 , 88 , 96
D2 (mm)	10 , 104 , 12 , 120 , 136 , 144 , 16 , 160 , 180 , 20 , 200 , 220 , 24 , 32 , 40 , 44 , 48 , 54 , 60 , 72 , 78 , 90 , 96
D3 (mm)	M 10 , M 100 , M 110 , M 12 , M 16 , M 20 , M 22 , M 24 , M 27 , M 30 , M 36 , M 39 , M 45 , M 48 , M 5 , M 52 , M 6 , M 60 , M 68 , M 72 , M 8 , M 80 , M 90
H1 (mm)	111,0 , 119,5 , 139,5 , 147,0 , 15,5 , 158,0 , 18,0 , 185,0 , 211,0 , 221,0 , 24,0 , 246,0 , 276,0 , 30,0 , 307,0 , 339,0 , 36,0 , 49,0 , 61,0 , 67,0 , 73,0 , 83,5 , 91,0

SKU: skopac-din-82101-rx-lift Categories: General hardware, Bow shackles
