Thimble acc. to DIN 3090 RX-lift

Thimble acc. to DIN 3090 RX-lift

Rope diameter (mm)

A (mm)

B (mm)

c (mm)

D (mm)

E (mm)

F (mm)

Weight (kg/100 pcs)

Clear

Categories:General hardware, Thimbles

Brand: RX-lift

Tablica
Description

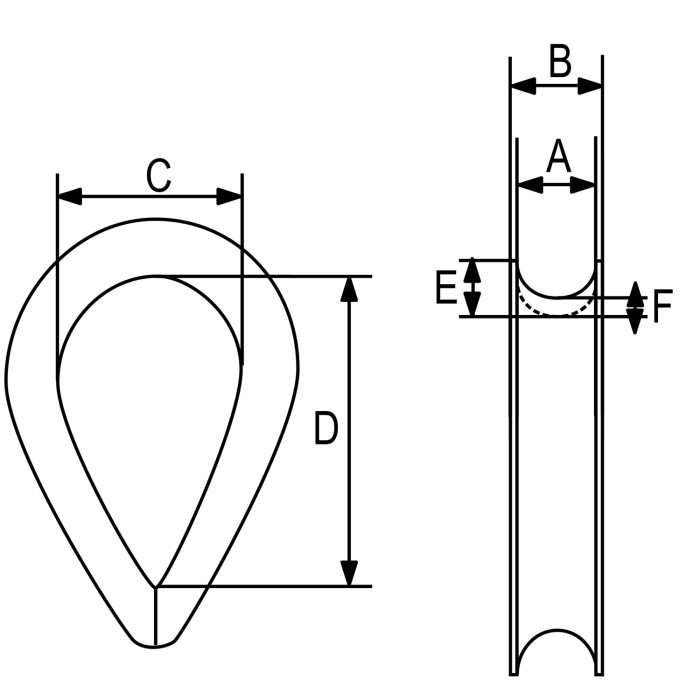

Rope diameter (mm)	A (mm)	B (mm)	c (mm)	D (mm)	E (mm)	F (mm)	Weight (kg/100 pcs)	Add to Enquiry
0	0	0	0	0	0	0	0	0
4	5	9	10	20	51	21	1,4	Add +
6	7	12	15	30	71	26	3	Add +
8	9	13	20	40	11	4	7,1	Add +
10	11	16	25	50	14	5	17	Add +
12	13	19	30	60	16	6	24	Add +
14	16	22	35	70	17	7	31	Add +
16	18	25	40	80	19	8	50	Add +
18	20	27	45	90	21	9	62	Add +
20	22	32	50	100	23	10	90	Add +
22	24	33	55	110	24	10	100	Add +
24	26	37	60	120	27	11	130	Add +
26	29	46	65	130	30	12	220	Add +
28	31	50	70	140	33	12	240	Add +
32	35	55	80	160	38	14	270	Add +
36	40	60	90	180	42	16	430	Add +
40	44	65	100	200	46	18	570	Add +
44	48	70	110	220	53	20	850	Add +
48	53	75	120	240	58	22	1120	Add +
52	57	80	130	260	64	25	1530	Add +
56	62	8,5	140	280	67	25	2148	Add +
60	66	90	150	300	70	25	2300	Add +
64	70	95	160	320	78	30	3500	Add +
68	75	100	170	340	81	30	3700	Add +
72	79	105	180	360	84	30	4100	Add +
76	84	115	190	380	87	30	4600	Add +
80	88	120	200	400	90	30	5400	Add +
