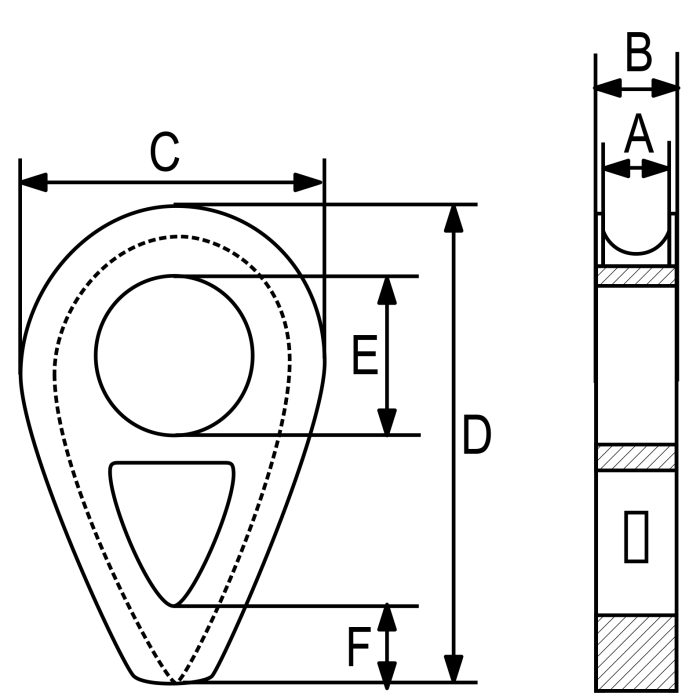

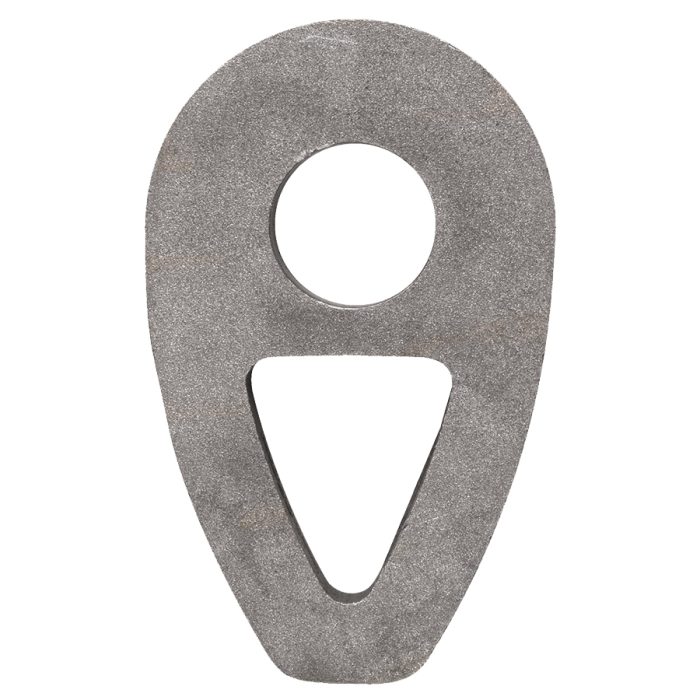

Thimble acc. to DIN 3091 RX-lift

Thimble acc. to DIN 3091 RX-lift

Rope diameter (mm)

A (mm)

B (mm)

c (mm)

D (mm)

E (mm)

F (mm)

Weight (kg/100 pcs)

Clear

Categories:General hardware, Thimbles

Brand: RX-lift

Tablica
Description

Rope diameter (mm)	A (mm)	B (mm)	c (mm)	D (mm)	E (mm)	F (mm)	Weight (kg/100 pcs)	Add to Enquiry
0	0	0	0	0	0	0	0	0
8	9	15	40	66	14		18	Add +
10	11	175	50	82	18		32	Add +
12	13	20	60	98	21		52	Add +
14	16	23,5	70	114	25		80	Add +
16	18	26	80	130	28	16	90	Add +
18	20	28,5	90	14,5	31	18	121	Add +
20	22	31	100	161	35	20	161	Add +
22	24	335	110	177	38	22	211	Add +
24	26	36	120	193	41	24	271	Add +
26	29	39,5	130	209	44	26	355	Add +
28	31	42	140	224	47	28	420	Add +
32	35	47	160	256	53	32	630	Add +
36	40	53	180	288	59	36	884	Add +
40	44	58	200	320	65	40	1100	Add +
44	48	63	220	352	70	44	1500	Add +
48	53	69	24,0	384	76	48	2000	Add +
52	57	74	260	416	81	52	2500	Add +
56	62	80	280	448	86	56	3200	Add +
64	70	90	320	512	95	64	4600	Add +
72	79	101	360	576	104	72	6600	Add +
80	88	112	400	640	112	80	9000	Add +

Thimble acc. to DIN 3091 RX-lift
