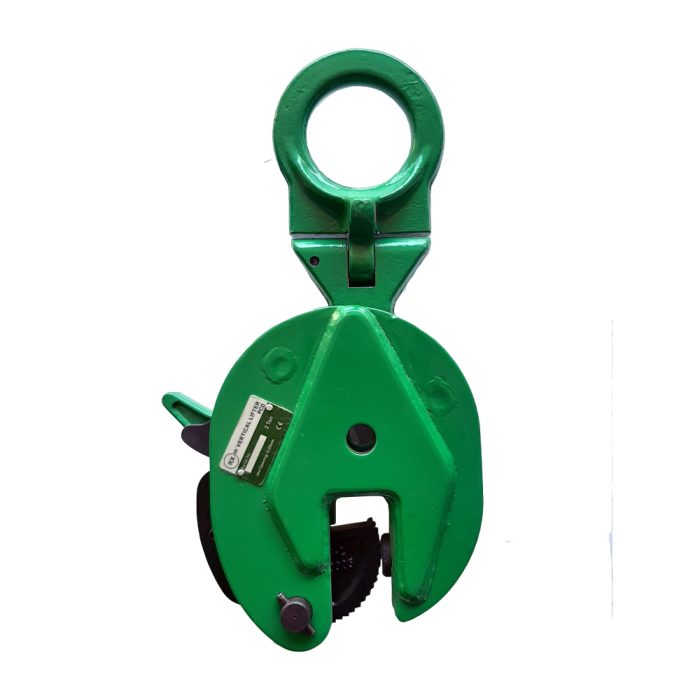

Universal plate clamp type PCD RX-lift

• EN 13155
• vertical lifting and transport of the steel plates and construction
• full 180° turning range for material transfer, turning or moving
• safety lock mechanism
• min. capacity is 10% max. capacity
• for materials with a a surface hardness up to 30 HRC (285 HB)
• not suitable for lifting stainless steel and copper
• jaw opening from 0 to 80 mm
• temperature of use form -40 to 100°C

Varijacije

Capacity (t)	Grip opening R (mm)	T (mm)	U (mm)	V (mm)	L (mm)	Net weight (kg)
0.5	0-15	205	30	105	48	2
1.0	0-20	300	50	145	66	5
2.0	0-25	385	68	175	75	8
3.0	0-30	430	75	215	102	15
5.0	0-50	500	68	232	112	23
8.0	0-45	600	88	290	125	37
12.0	50-90	700	90	420	128	50
16.0	60-100	710	100	445	128	65
20.0	0-80	948	100	563	140	160
30.0	10-90	944	100	568	142	167

Description

Additional information

Capacity (t)
Grip opening R (mm)
T (mm)	205 , 300 , 385 , 430 , 500 , 600 , 700 , 710 , 944 , 948
U (mm)	100 , 30 , 50 , 68 , 75 , 88 , 90
V (mm)	105 , 145 , 175 , 215 , 232 , 290 , 420 , 445 , 563 , 568
L (mm)	102 , 112 , 125 , 128 , 140 , 142 , 48 , 66 , 75
Net weight (kg)
