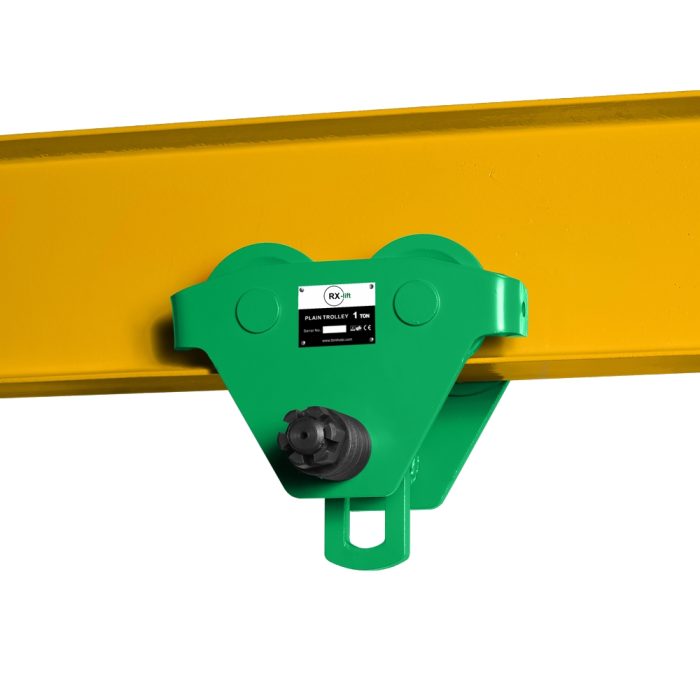

Plain travel trolley type GCT 810 RX-lift

• EN 13157

Varijacije

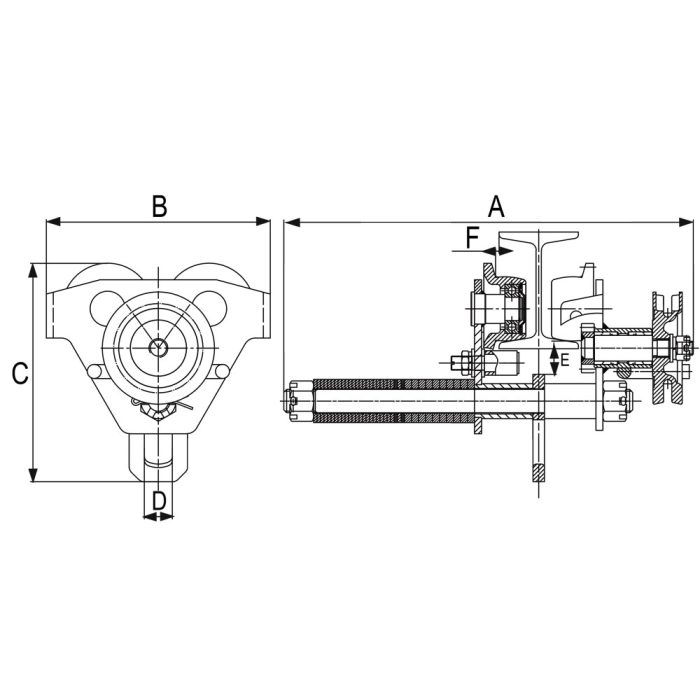

Capacity (t)	Test force (t)	Width of I-profile for type S (mm)	Width of I-profile for type L (mm)	A, type S (mm)	A, type L (mm)	B (mm)	D (mm)	E (mm)	F (mm)	Min. radius (m)	Net weight S≈L (kg)
0,5	0,625	68-203	68-305	297	399	212	22	29,5	≈3	0,6	6
1	1,25	68-203	68-305	310	412	248	28	30	≈3	0,8	10
2	2,5	88-203	88-305	329	431	293	34	30	≈3	1	17
3	3,75	110-203	110-305	348	450	350	42	34,5	≈3	1,4	29
5	6,25	116-203	116-305	378	480	382	48	36,5	≈3	1	44
10	12,5	130-203	130-305	411	513	471	72	40	≈3	1,2	87

Katalog

Description

• EN 13157

Additional information

Capacity (t)
Test force (t)
Width of I-profile for type S (mm)
Width of I-profile for type L (mm)
A, type S (mm)
A, type L (mm)
B (mm)	212 , 248 , 293 , 350 , 382 , 471
D (mm)	22 , 28 , 34 , 42 , 48 , 72
E (mm)	29,5 , 30 , 34,5 , 36,5 , 40
F (mm)	≈3
Min. radius (m)
Net weight S≈L (kg)

SKU: kolica-za-dizalicu-standard-810 Categories: Manual chain hoists, Hoists, clamps
