| Capacity (t) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Net weight (kg) | Add to Enquiry |
| 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 1.0 | 0-30 | 59 | 230 | 234 | 450 | 44 | 15 | 80 | 6,5 | Add + |

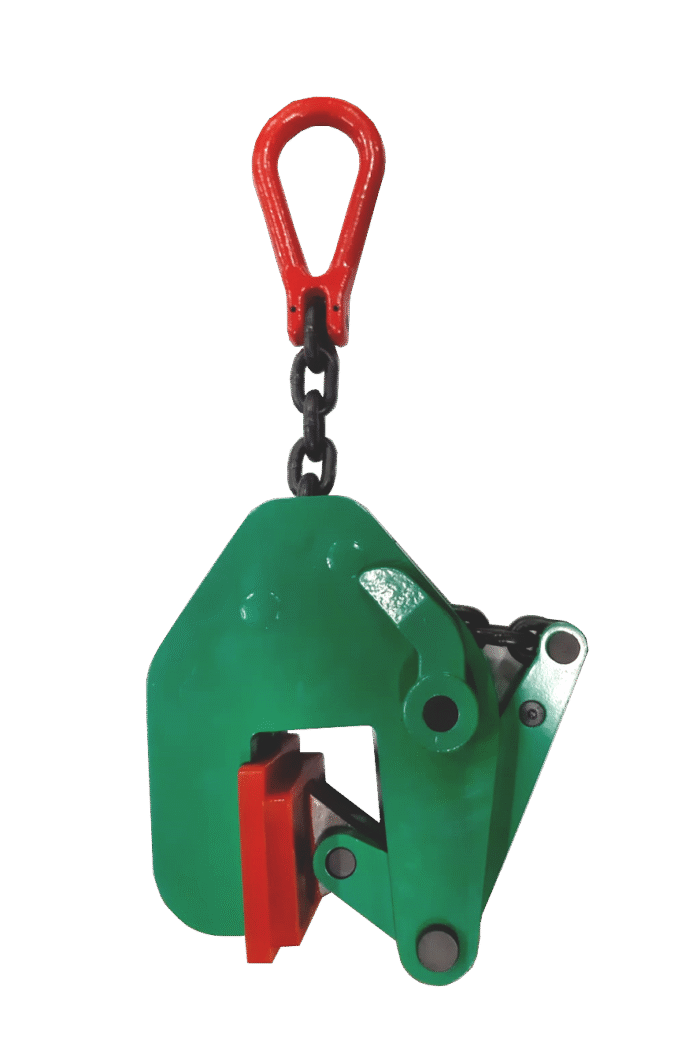

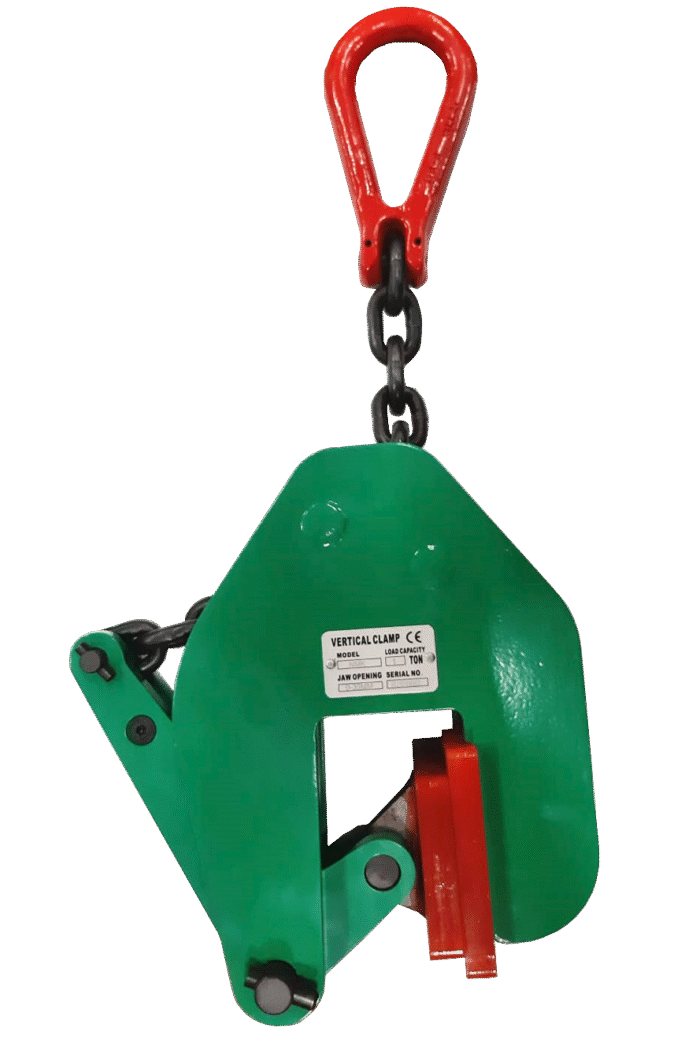

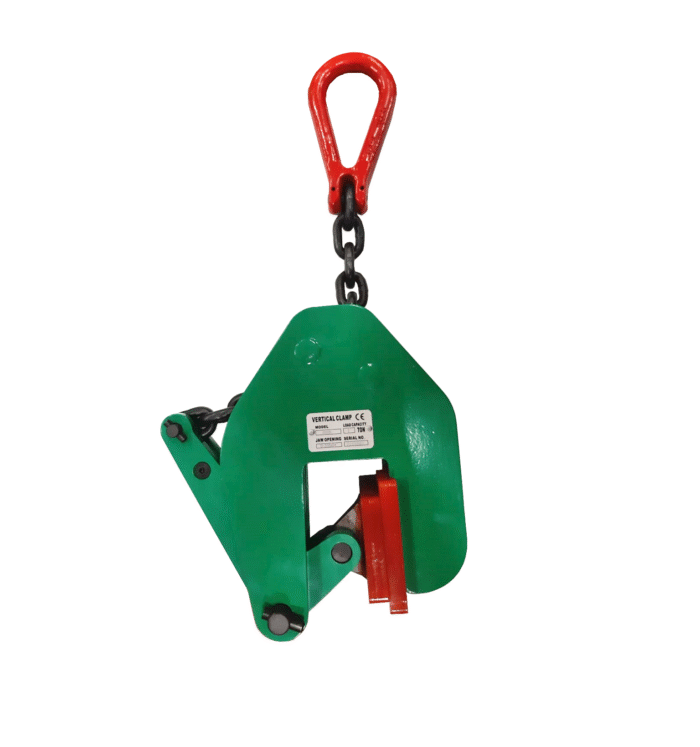

Vertical plate clamp for stainless steel type NMVC RX-lift
• EN 13155

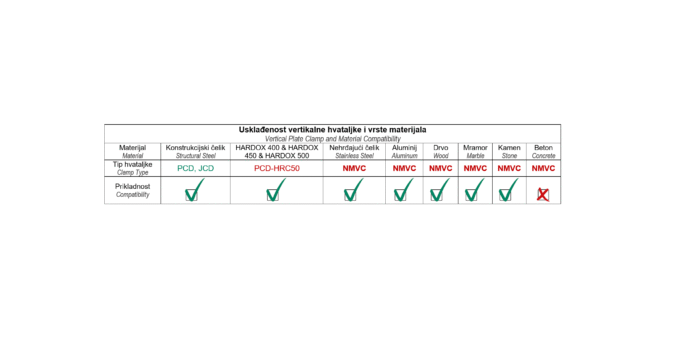

• vertical lifting and transporting of plates, sheets and structures made of stainless steel, aluminum, wood, marble, stone and other materials whose surface can be damaged during lifting operations
• safety mechanism
• equipped with a chain lifting master link (shackle) for flexible manipulation and lifting
• jaws (blocks) are made of anti-friction special synthetic material which ensures non-marking during lifting
• for materials where is important to ensure non-marking (non-damage) of load surface
• no minimal working load limit (WLL)
• working temperature from -10 to 60°C
• EN 13155
• vertical lifting and transporting of plates, sheets and structures made of stainless steel, aluminum, wood, marble, stone and other materials whose surface can be damaged during lifting operations
• safety mechanism
• equipped with a chain lifting master link (shackle) for flexible manipulation and lifting
• jaws (blocks) are made of anti-friction special synthetic material which ensures non-marking during lifting
• for materials where is important to ensure non-marking (non-damage) of load surface
• no minimal working load limit (WLL)
• working temperature from -10 to 60°C
