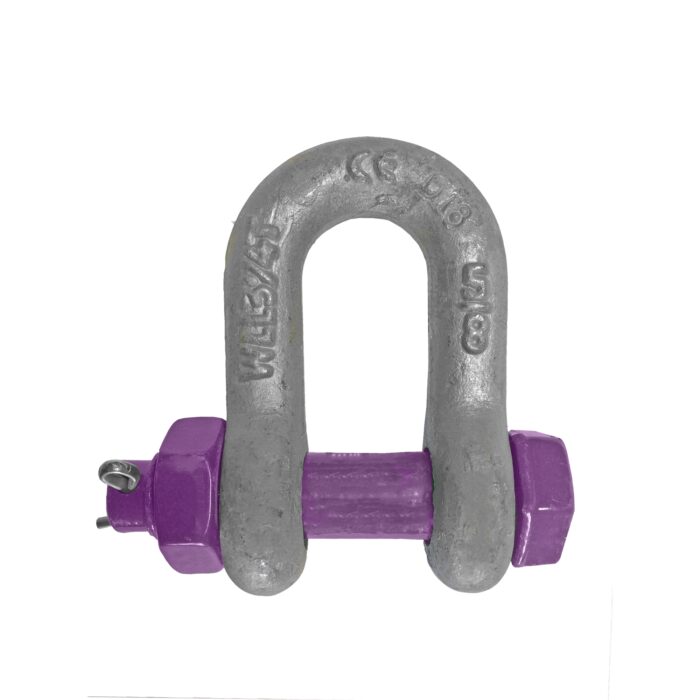

High tensile steel dee shackle with safety pin G2150 RX-lift

High tensile steel dee shackle with safety pin G2150 RX-lift - Image 2

High tensile steel dee shackle with safety pin G2150 RX-lift

• standard: EN 13889
• material: high-tensile steel
• safety factor: 6:1
• finish: hot dipped galvanized

Varijacije

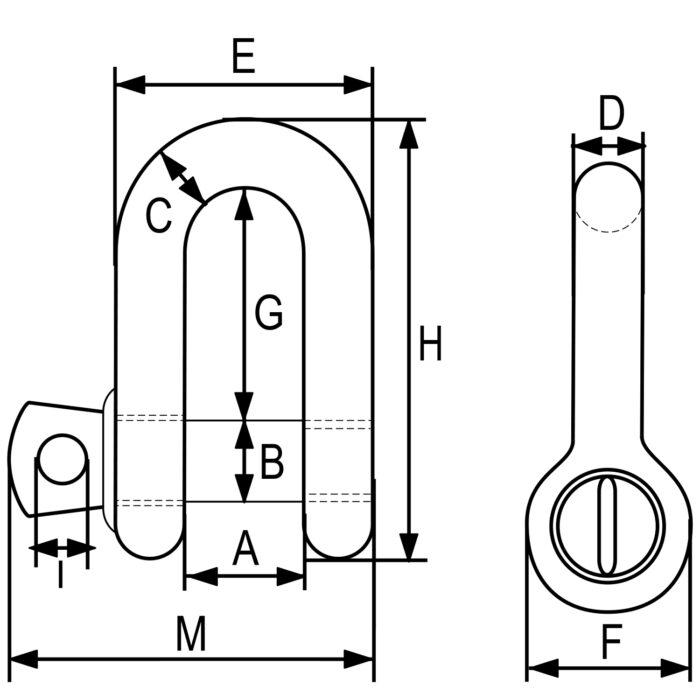

Capacity (t)	Tag	Size (inch)	A (mm)	B (mm)	c (mm)	D (mm)	Napomena	Dodaj na ponudu
0,5	1/2	1/4	11.9	7.85	6.35	15.5
0,75	3/4	5/16	13.5	9.65	7.85	19.1
10	1	3/8	16.8	11.2	9.65	23.1
1,5	1-1/2	7/16	19.1	12.7	11.2	26.9
2,0	2	1/2	20.6	16.0	12.7	30.2
3,25	3-1/4	5/8	26.9	19.1	16.0	38.1
4,75	4-3/4	3/4	31.8	22.4	19.1	46.0
65	6-1/2	7/8	36.6	25.4	22.4	53.0
8,5	8-1/2	1	42.9	28.7	25.4	60.5
9,5	9-1/2	1-1/8	46.0	31.8	28.7	68.5
12,0	12	1-1/4	51.5	35.1	31.8	76.0
13,5	13-1/2	1-3/8	57.0	38.1	35.1	84.0
17,0	17	1-1/2	60.5	41.4	38.1	92.0
250	25	1-3/4	73.0	51.0	44.5	106
35,0	35	2	82.5	57.0	51.0	122
55,0	55	2-1/2	105	70.0	66.5	14,5
85,0	85	3	127	82.5	76.0	165

Description

• standard: EN 13889
• material: high-tensile steel
• safety factor: 6:1
• finish: hot dipped galvanized

Additional information

Capacity (t)
Tag
Size (inch)
A (mm)	105 , 11.9 , 127 , 13.5 , 16.8 , 19.1 , 20.6 , 26.9 , 31.8 , 36.6 , 42.9 , 46.0 , 51.5 , 57.0 , 60.5 , 73.0 , 82.5
B (mm)	11.2 , 12.7 , 16.0 , 19.1 , 22.4 , 25.4 , 28.7 , 31.8 , 35.1 , 38.1 , 41.4 , 51.0 , 57.0 , 7.85 , 70.0 , 82.5 , 9.65
c (mm)	11.2 , 12.7 , 16.0 , 19.1 , 22.4 , 25.4 , 28.7 , 31.8 , 35.1 , 38.1 , 44.5 , 51.0 , 6.35 , 66.5 , 7.85 , 76.0 , 9.65
D (mm)	106 , 122 , 14,5 , 15.5 , 165 , 19.1 , 23.1 , 26.9 , 30.2 , 38.1 , 46.0 , 53.0 , 60.5 , 68.5 , 76.0 , 84.0 , 92.0

SKU: skopac-ravni-s-maticom-visokootporni-g2150 Categories: Bow shackles, General hardware
