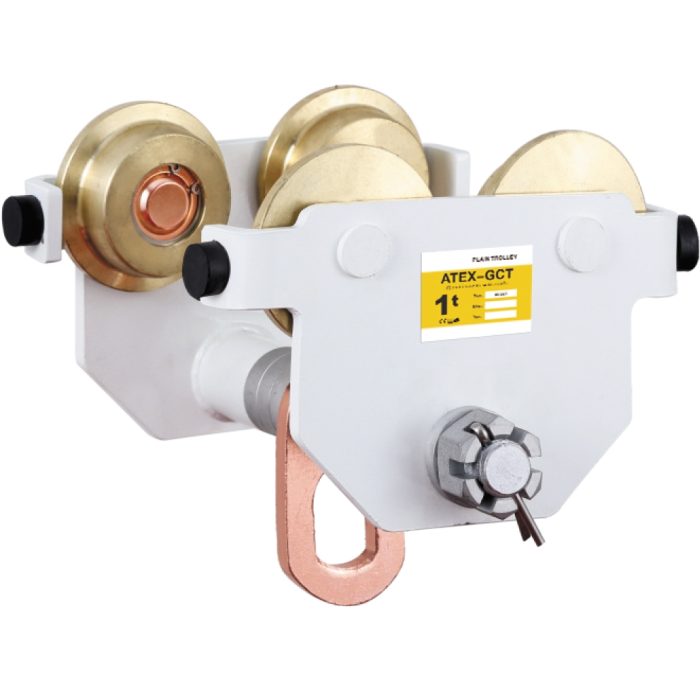

Plain and geared trolley RX-lift

• EN 13157

Varijacije

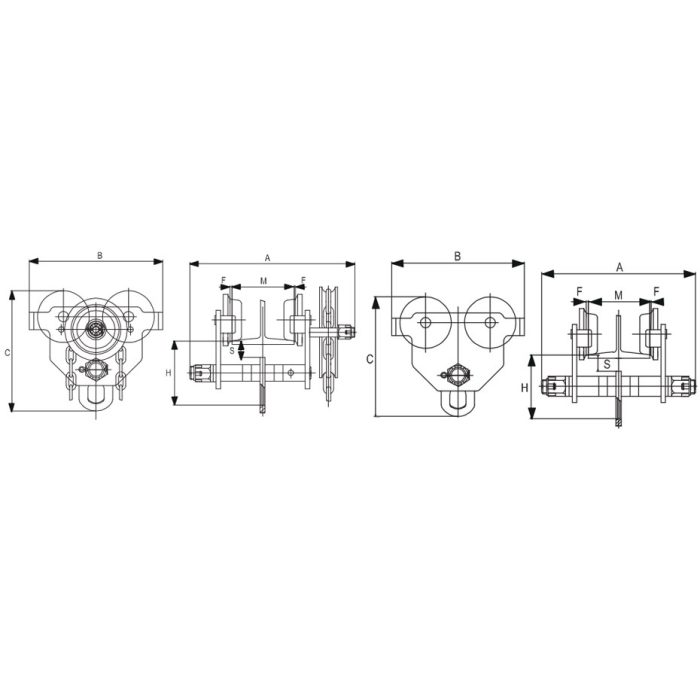

Capacity (t)	Test force (kN)	A type a (mm)	A type b (mm)	B (mm)	c (mm)	H (mm)	S (mm)	F (mm)	M type a (mm)	Net weight (kg)
1	14,71	311	413	246	222	125	38	1,5-3	64-203	15
2	29,42	327	429	276	263	150	38	1,5-3	88-203	22
3	44,13	343	445	332	309	171	40	1,5-3	100-203	32
5	61,29	355	457	377	353	196	42	1,5-3	114-203	47
10	122,58	388	490	424	396	190	45	1,5-3	124-203	92
10	245,17	449	551	555	498	233	58	1,5-3	136-206	171
20	367,75		582	710	598	285	65	1,5-3	-	337

Katalog

Description

• EN 13157

Additional information

SKU: kolica-za-dizalicu-standard-compact-neiskreca Categories: Manual chain hoists, Hoists, clamps
