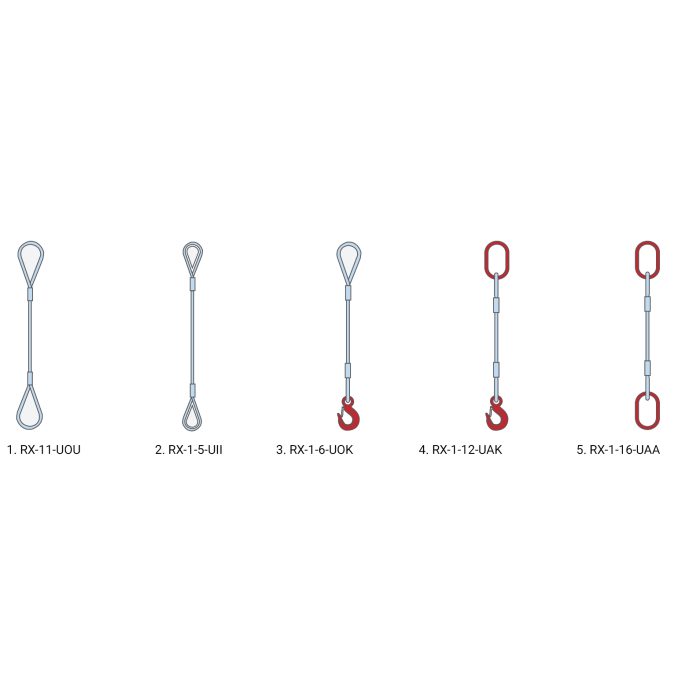

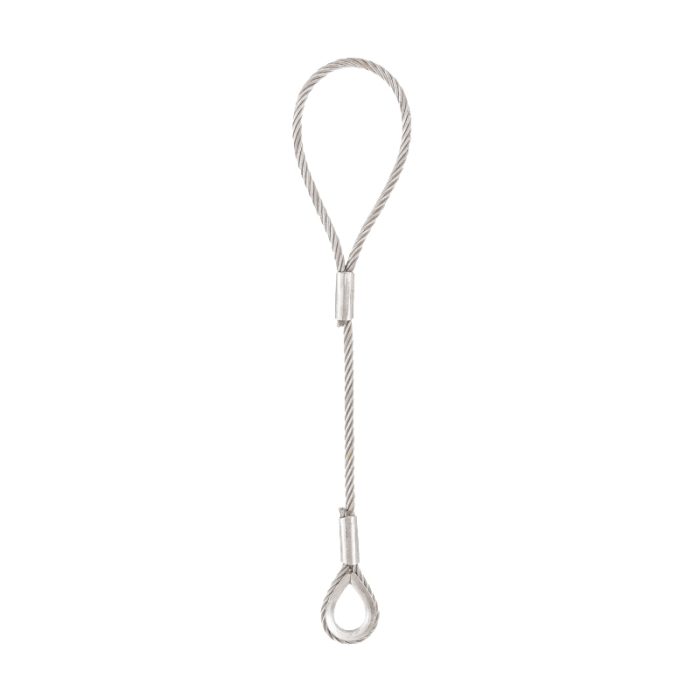

Wire rope sling 1-leg RX-lift

Wire rope sling 1-leg RX-lift - Image 2

Wire rope sling 1-leg RX-lift

• wire rope slings according to HRN EN 13414-1
• safety factor: 5: 1
• elements matched the load capacity of the ropes
• production of different lengths and finishes, machine pressed, twisted or flooded (Wirelock)

Varijacije

Rope diameter (mm)	Capacity (t) 0°-45°	The arm factor	Napomena	Dodaj na ponudu
6	0,35	1
8	0,60	1
10	0,95	1
12	1,4	1
13	1,6	1
14	1,9	1
16	2,45	1
18	3,1	1
20	3,85	1
22	4,65	1
24	5,5	1
26	6,5	1
28	7,5	1
30	8,65	1
32	9,80	1
34	11,1	1
36	12,4	1
38	13,9	1
40	15,3	1
42	16,9	1
44	18,5	1
46	20,3	1
48	22,0	1
50	23,9	1
52	25,9	1
54	28,0	1
58	32,0	1
56	30,0	1
60	34,5	1

Katalog

Preuzmi katalog (PDF)

Description

• wire rope slings according to HRN EN 13414-1
• safety factor: 5: 1
• elements matched the load capacity of the ropes
• production of different lengths and finishes, machine pressed, twisted or flooded (Wirelock)

Additional information

Rope diameter (mm)
Capacity (t) 0°-45°
The arm factor

SKU: celicna-priveznica-1-kraka Categories: Wire ropes and chains, Wire rope sling 1,2,3,4-arm
