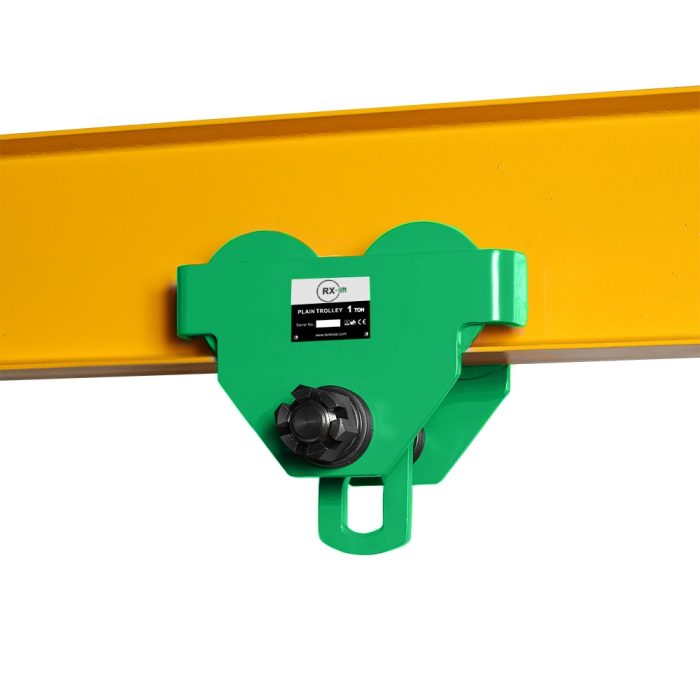

Plain travel trolley type GCT619 RX-lift

Plain travel trolley type GCT619 RX-lift - Image 2

Plain travel trolley type GCT619 RX-lift

• EN 13157

Varijacije

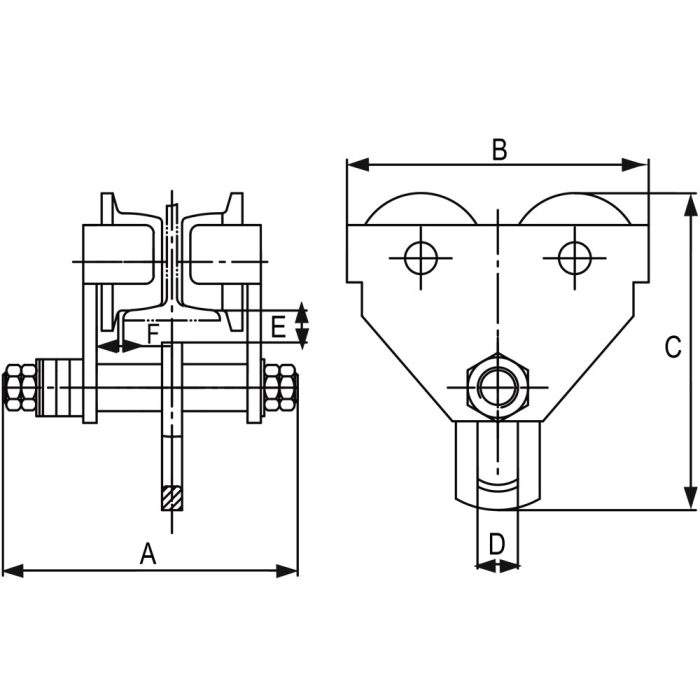

Capacity (t)	Test force (t)	Width of I-profile (mm)	A (mm)	B (mm)	c (mm)	D (mm)	E (mm)	F (mm)	Min. radius (m)	Net weight (kg)	Napomena	Dodaj na ponudu
0,5	0,625	64-140	230	212	198,5	24	28	≈3	0,6	7
1	1,25	64-140	254	25,5	231,5	30,5	25	≈3	0,8	12
2	2,5	76-165	294	302	278	36	27	≈3	1,0	20,5
3	3,75	76-203	344	344	338	45	32	≈3	1,1	33
5	12,5	88-203	360	378	393	60	34	≈3	1,3	51
10	1,25	125-203	403	455	490	82	36,5	≈3	1,4	86,5

Katalog

Preuzmi katalog (PDF)

Description

• EN 13157

Additional information

Capacity (t)
Test force (t)
Width of I-profile (mm)
A (mm)	230 , 254 , 294 , 344 , 360 , 403
B (mm)	212 , 25,5 , 302 , 344 , 378 , 455
c (mm)	198,5 , 231,5 , 278 , 338 , 393 , 490
D (mm)	24 , 30,5 , 36 , 45 , 60 , 82
E (mm)	25 , 27 , 28 , 32 , 34 , 36,5
F (mm)	≈3
Min. radius (m)
Net weight (kg)

SKU: kolica-za-dizalicu-standard-619 Categories: Hoists, clamps, Manual chain hoists
