• lever hoist in accordance with EU standard ATEX2014 / 34 / EU and Directive 2006/42 / EC, CE / GS
• Explosion protection resistance level: Ex II 2 GD c II II C T4 IIIC T135
• Suitable for: potentially explosive or dusty atmosphere
• work areas: Zones 1 and 2 (gas), Zones 21 and22 (dust)
• The entire product is equipped with an anti spark coating, and the brake system completely protects the foreign substance from entering the mechanism
• support chain: galvanized or stainless steel

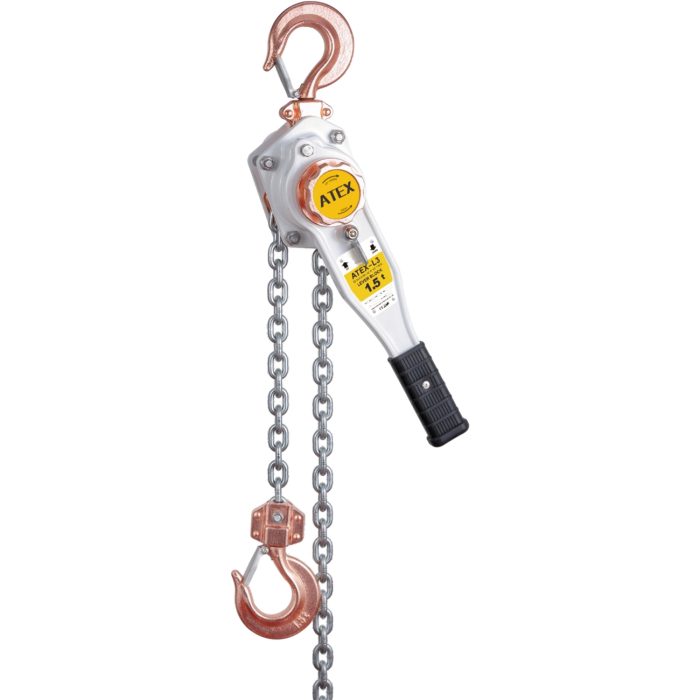

Spark proof manual chain hoist ATEX RX-lift
• lever hoist in accordance with EU standard ATEX2014 / 34 / EU and Directive 2006/42 / EC, CE / GS
• Explosion protection resistance level: Ex II 2 GD c II II C T4 IIIC T135
• Suitable for: potentially explosive or dusty atmosphere
• work areas: Zones 1 and 2 (gas), Zones 21 and22 (dust)
• The entire product is equipped with an anti spark coating, and the brake system completely protects the foreign substance from entering the mechanism
• support chain: galvanized or stainless steel
Napomena: Označite potvrdne okvire na popisu varijanti kako biste ih prebacili u košaricu za ponude jednim klikom pomoću gumba Dodaj označene proizvode.

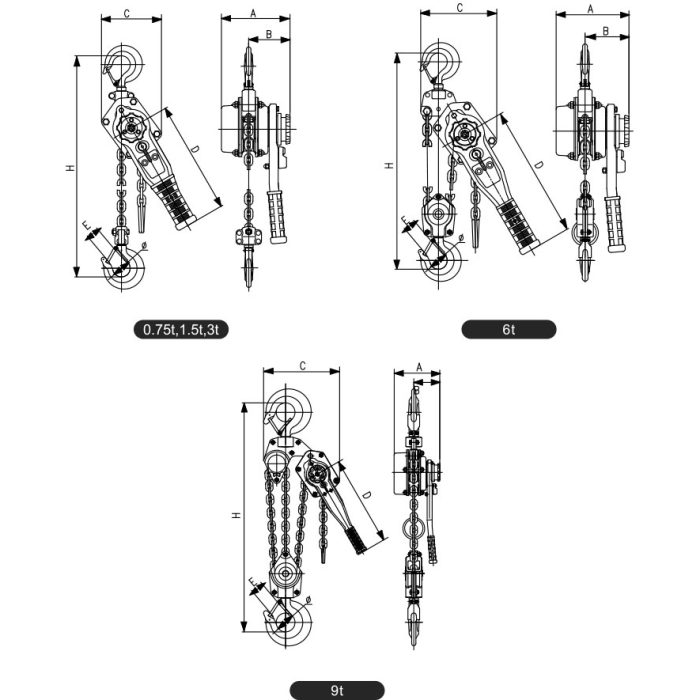

| Capacity (t) | Chain drop nr. | Dim. of the bearing chain (mm) | A (mm) | B (mm) | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0,5 | 1 | 5x15 | 143 | 90,5 | |||
| 0,75 | 1 | 6x18 | 157 | 94 | |||
| 1,5 | 1 | 7x21 | 178 | 104 | |||
| 3,0 | 1 | 10x30 | 206 | 118 | |||
| 6,0 | 2 | 10x30 | 206 | 118 | |||
| 9,0 | 3 | 10x30 | 206 | 118 |
