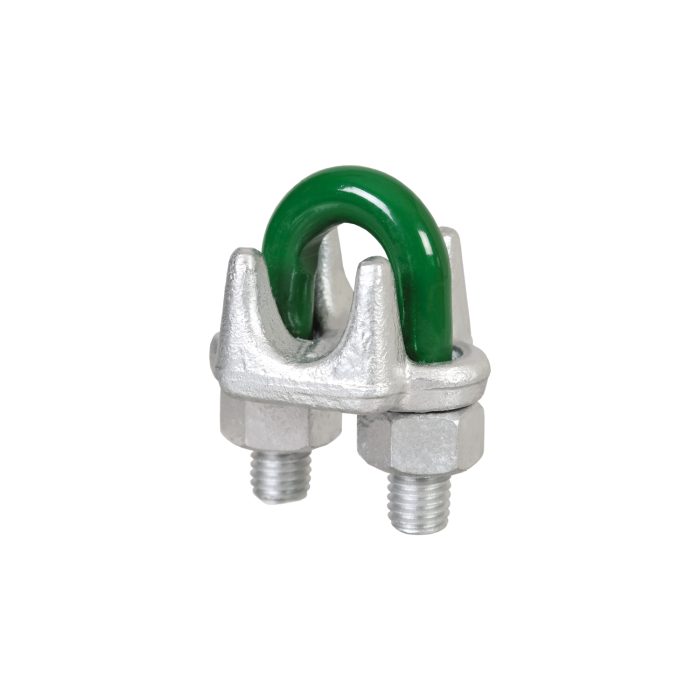

Wire rope clip acc. to EN 13411-5 G-6240 Green Pin

Varijacije

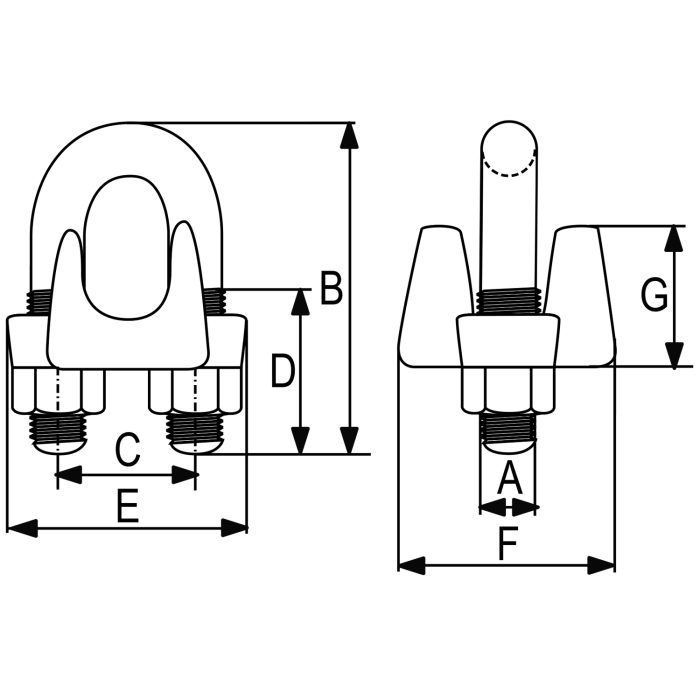

Diameter of steel rope (mm)	A (mm)	B (mm)	c (mm)	D (mm)	E (mm)	F (mm)	G (mm)	Torque Value (Ft. Lbs)	Weight (kg/100 pcs)
3-4	5	24	12	11	24	21	10	4,5	2,0
5	6	31	15	13	29	24	13	7,5	4
6-7	8	34	19	13	3,7	30	18	15	8
8	10	45	22	19	43	33	19	30	13
9-10	11	49	26	19	49	42	25	45	19
11	12	60	30	25	58	46	26	65	33
12-13	13	61	30	25	58	48	31	65	34
14-15	14	72	33	32	63	52	31	95	45
16	14	74	33	32	64	54	36	95	45
18-20	16	86	38	37	72	57	38	130	68
22	19	98	45	41	80	62	40	225	108
24-26	19	108	48	46	88	67	47	225	113
28-30	19	117	51	51	91	73	48	360	140
32-34	22	130	59	54	105	79	56	360	207
36	22	140	60	59	108	79	58	360	234
38-40	22	147	66	60	112	85	64	430	254
41-42	25	161	70	67	121	92	67	590	329
44-46	29	174	78	70	134	97	76	750	441
48-52	32	195	86	78	150	113	85	750	603
56-58	32	213	98	81	162	116	100	750	707
62-65	32	227	105	87	168	119	113	750	806
68-72	32	243	112	91	174	127	124	750	1015
75-78	38	271	121	98	194	135	136	1200	1472

Description

• standard: EN 13411-5 type B
• hot dipped galvanized u-bolt and/or nuts for diameter bow 5, 6, 8 and 10 mm are electro-galvanized
• bridge: drop forged high tensile steel SAE 1045 u-bolt: SAE 1015

Additional information

Diameter of steel rope (mm)
A (mm)	10 , 11 , 12 , 13 , 14 , 16 , 19 , 22 , 25 , 29 , 32 , 38 , 5 , 6 , 8
B (mm)	108 , 117 , 130 , 140 , 147 , 161 , 174 , 195 , 213 , 227 , 24 , 243 , 271 , 31 , 34 , 45 , 49 , 60 , 61 , 72 , 74 , 86 , 98
c (mm)	105 , 112 , 12 , 121 , 15 , 19 , 22 , 26 , 30 , 33 , 38 , 45 , 48 , 51 , 59 , 60 , 66 , 70 , 78 , 86 , 98
D (mm)	11 , 13 , 19 , 25 , 32 , 37 , 41 , 46 , 51 , 54 , 59 , 60 , 67 , 70 , 78 , 81 , 87 , 91 , 98
E (mm)	105 , 108 , 112 , 121 , 134 , 150 , 162 , 168 , 174 , 194 , 24 , 29 , 3,7 , 43 , 49 , 58 , 63 , 64 , 72 , 80 , 88 , 91
F (mm)	113 , 116 , 119 , 127 , 135 , 21 , 24 , 30 , 33 , 42 , 46 , 48 , 52 , 54 , 57 , 62 , 67 , 73 , 79 , 85 , 92 , 97
G (mm)	10 , 100 , 113 , 124 , 13 , 136 , 18 , 19 , 25 , 26 , 31 , 36 , 38 , 40 , 47 , 48 , 56 , 58 , 64 , 67 , 76 , 85
Torque Value (Ft. Lbs)
Weight (kg/100 pcs)
