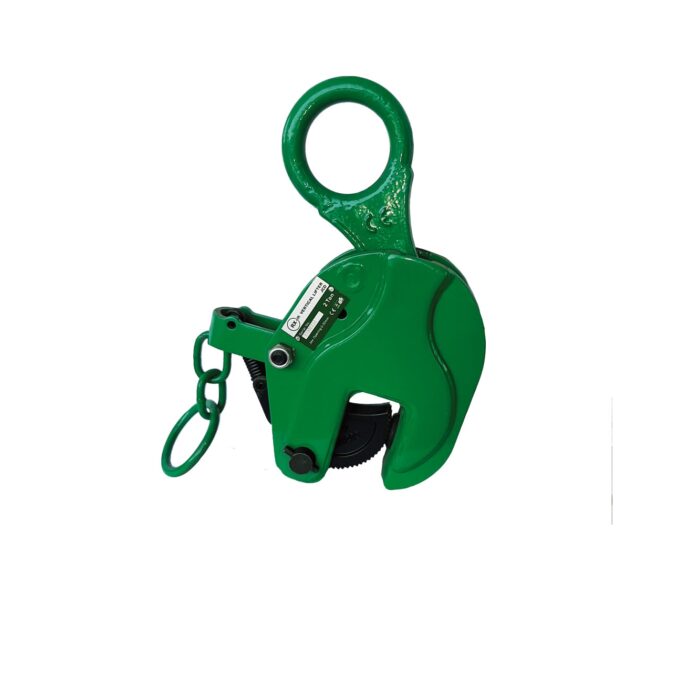

Vertical plate clamp type JCD RX-lift

• EN 13155
• vertical lifting and transport of steel plate and construction (max. side angle 15°)
• safety lock mechanism
• in case of using more clamps, use them in combination with a spreader beam which will allow the use of clamps in vertical configurations
• min. capacity is 10% max. capacity
• for materials with a a surface hardness up to 30 HRC (285 HB)
• not suitable for lifting stainless steel and copper
• jaw opening from 0 to 60 mm
• temperature of use form -40 to 100°C

Brand:

• EN 13155
• vertical lifting and transport of steel plate and construction (max. side angle 15°)
• safety lock mechanism
• in case of using more clamps, use them in combination with a spreader beam which will allow the use of clamps in vertical configurations
• min. capacity is 10% max. capacity
• for materials with a a surface hardness up to 30 HRC (285 HB)
• not suitable for lifting stainless steel and copper
• jaw opening from 0 to 60 mm
• temperature of use form -40 to 100°C

Napomena: Označite potvrdne okvire na popisu varijanti kako biste ih prebacili u košaricu za ponude jednim klikom pomoću gumba Dodaj označene proizvode.

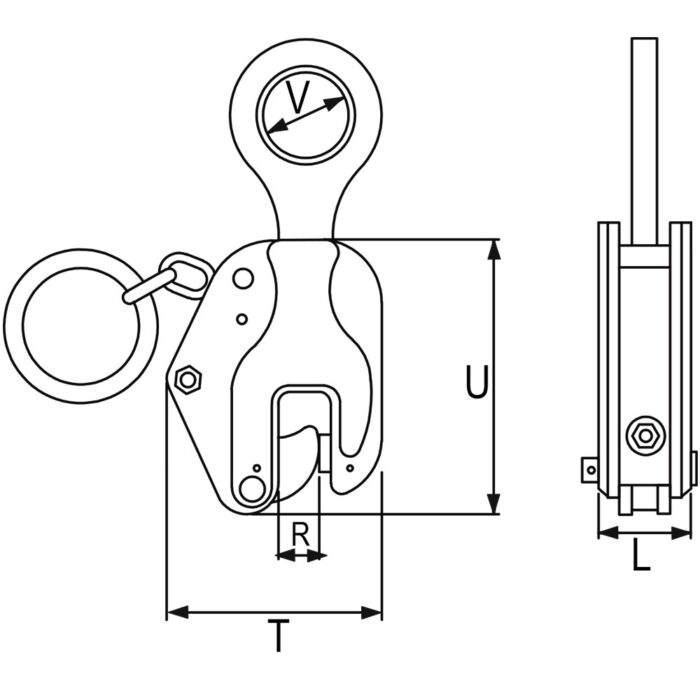

Capacity (t)Grip opening R (mm)T (mm)U (mm)V (mm)L (mm)Net weight (kg)Quantity
1.00-2212429550543,6
2.00-3015438554565,5
3.00-40180400607210
5.00-50222483687617
8.00-60265535659026

Napomena: Označite potvrdne okvire na popisu varijanti kako biste ih prebacili u košaricu za ponude jednim klikom pomoću gumba Dodaj označene proizvode.
